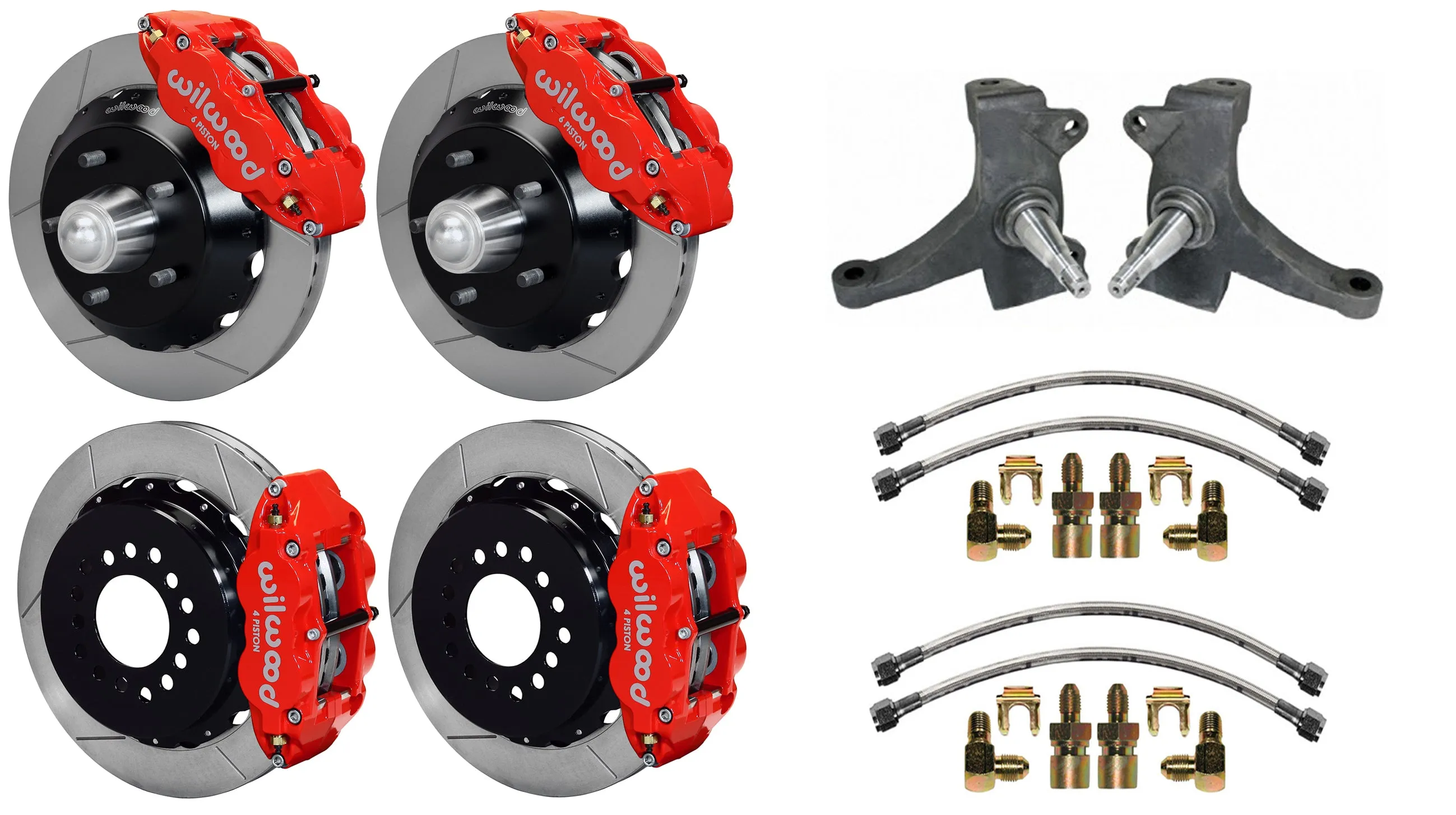

BRAND NEW WILWOOD FRONT & REAR DISC BRAKE KIT WITH RIDETECH 2 1/2" DROP SPINDLES AND STEEL BRAIDED LINE KITS.

FEATURES POWDER-COATED RED CALIPERS.

THIS COMBINED WILWOOD KIT BY SOUTHWEST SPEED INCLUDES:

• FRONT 6 PISTON, 13.06" DISC BRAKE KIT (#140-10775-R)
• 2 1/2" DROP SPINDLES (#11349300)
• REAR 4 PISTON, 12.88" DISC BRAKE KIT (#140-10093-R)
• FULL FRONT LINE KIT WITH 18" STEEL BRAIDED LINES, CALIPER FITTINGS, AND BRAKE LINE FITTINGS
• FULL REAR LINE KIT WITH 18" STEEL BRAIDED LINES, CALIPER FITTINGS, AND BRAKE LINE FITTINGS

SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED WITH THIS BRAKE KIT.

FITS:

• 1963-1970 CHEVY C10 AND GMC C15 2WD TRUCKS, PANELS AND SUBURBANS
• 1969-1970 CHEVY BLAZERS AND GMC JIMMYS

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FOR THE FRONT, SUPERLITE BIG BRAKE KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR AMERICAN MUSCLE TRUCKS AND RODS. FORGED NARROW SUPERLITE CALIPERS, 13.06" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET/STRIP MACHINES.

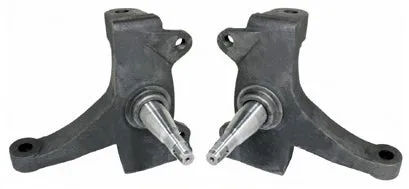

RIDETECH 2 1/2" DROP SPINDLES ARE PRECISION-CAST FROM HIGH-QUALITY DUCTILE IRON WITH 4140 CHROMOLY CNC MACHINED PINS

FOR THE REAR, FORGED NARROW SUPERLITE 4R REAR DISC KITS PROVIDE THE ULTIMATE BIG BRAKE SOLUTION WHERE A PARKING BRAKE IS NEEDED. FNSL4R FOUR PISTON CALIPERS, 13" TWO-PIECE ROTORS AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING TO COMPLIMENT THE FRONT BRAKES. THE NEATLY HIDDEN INTERNAL SHOW SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING

THESE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

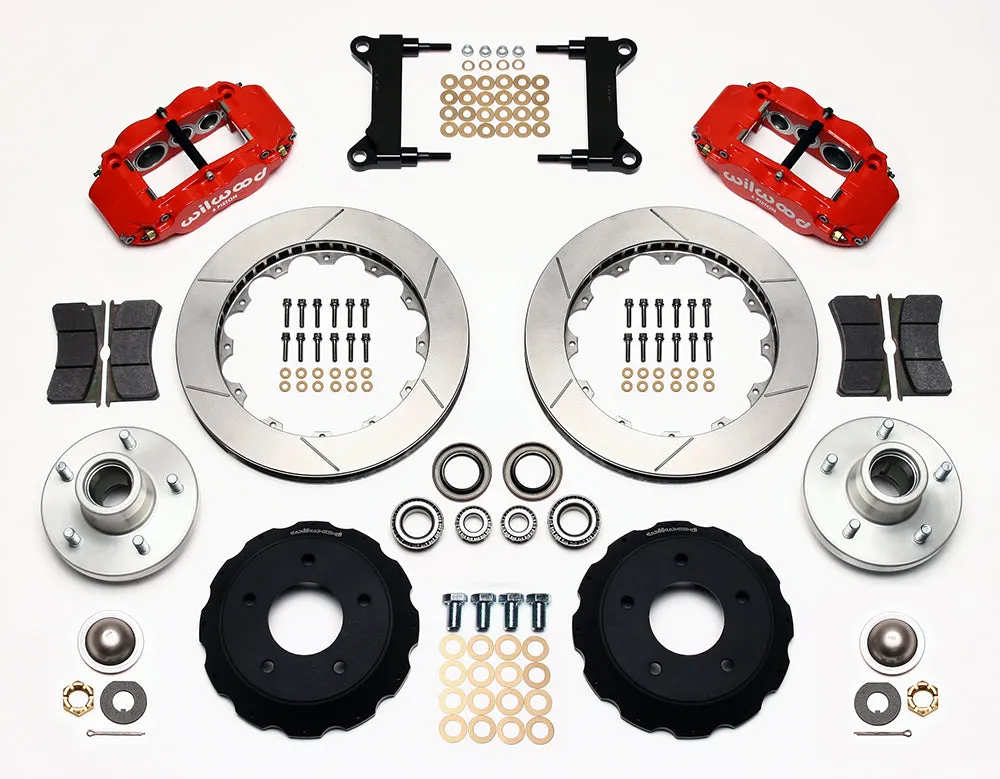

FRONT KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• RIDETECH 2 1/2" DROP SPINDLES
• 1.25" THICK X 13.06" O.D. ROTORS
• FORGED NARROW SUPERLITE 6 PISTON CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS, HUBS, BEARINGS, SEALS
• ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

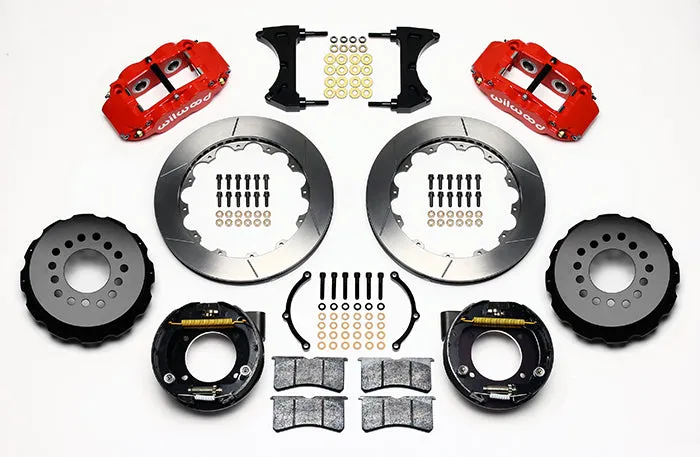

REAR KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• 1.10" THICK X 12.88" O.D. ROTORS
• FORGED SUPERLITE 4 PISTON CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• DRUM PARKING BRAKE ASSEMBLIES
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 163 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THE FRONT KIT AND THE REAR KIT.
